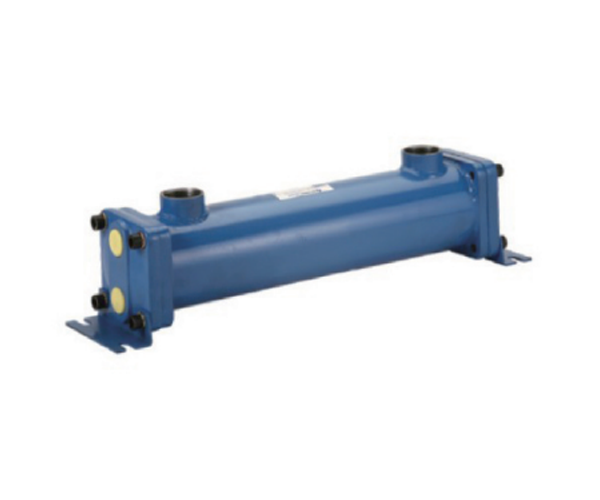

HST – N series

(1) Adopt advanced tube fin design to increase the heat dissipation area. Make the cooling medium fully heat. Compared with the traditional straight pipe heat dissipation performance, the heat dissipation effect is obviously improved.

Product features

1. Six processes water cooling

2. Small volume and large heat exchange area

3. European export type, high water quality requirements, when necessary to install filters

4. Save water

Product specification

Hst-n Series Selection curve (6 channels)
The curve is based on the following conditions
Oil ISOVG32
Oil inlet temperature 60℃
The inlet temperature of water is 32℃
Oil/water ratio 6:1
Structure 6 channel
Oil side pressure loss = 0.1mpa (1bar)
= 0.15 Mpa (1.5 bar)
Water side pressure loss 0.01Mpa-0.1mpa (0.1-1bar)
